Residential Garage Structural Modification & Extension in Alamo, CA

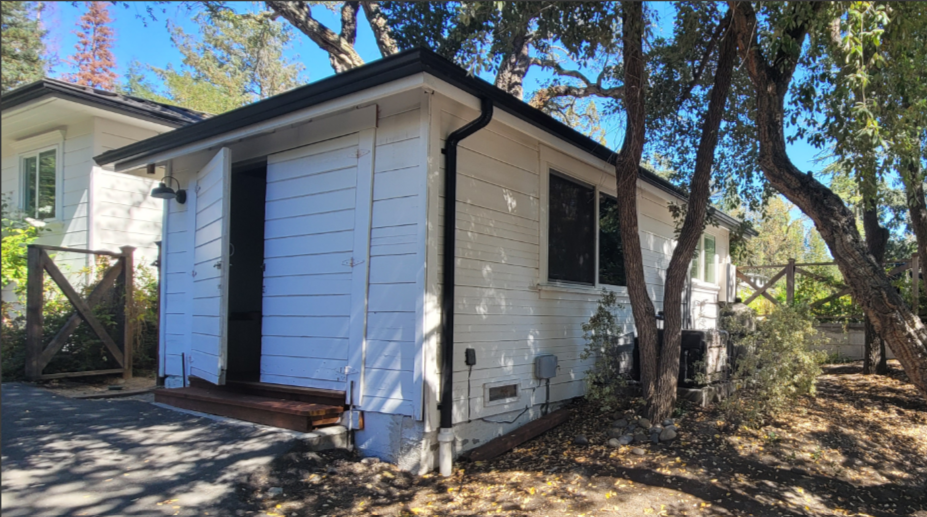

As an experienced architectural design firm operating across California, Unified Studio Architect compiled a comprehensive structural modification and accessory building permit package for an existing detached garage and adjacent shed layout on Oak Road in Alamo. The project focus centers strictly on expanding vehicular utility, enhancing daylight access, and creating structured outdoor shelter without altering primary lot setback constraints.
The custom engineering requirements targeted strict lateral wall bracing configurations (CS-G Wood Structural Panels), wide-span solid wood header paths, and seamless foundation doweling to connect old and new pours. All compliance pathways conform flawlessly to the current California Residential Code (CRC) and regional Contra Costa building guidelines.
Engineering safe lateral frameworks and durable foundations in California.
Utilizes continuous 7/16-inch thick wood structural panel sheathing, dense 8d common box framing edge nailing at 3 inches on-center, and double 2x4 king/jack studs to resist critical seismic and wind shear forces over a concrete block foundation.
Engineered with a solid 4x12 or minimum 3" x 11-1/4" net wood header to clear a single unified opening, bypassing the extended fabrication lead times of structural steel paths while meeting strict regional vertical load deflection parameters.
Excellently balanced footprint total of 5,345 sq. ft. across a spacious 39,400 sq. ft. low-density residential site encompassing the main 3,950 sq. ft. house, 850 sq. ft. garage, 400 sq. ft. ADU, and 145 sq. ft. shed infrastructure.
Functional Interventions for Accessory Structures
The custom architectural space configurations were designed to maximize accessibility, upgrade local fenestration efficiency, and integrate protected storage lines within existing yard areas.
-
01
Unified 16-Foot Vehicle Portal
Reconstructed front wall assembly combining two outdated 7-foot doors into a wide-span single portal opening to support streamlined vehicular navigation and premium clearance.
-
02
Weatherstripped Patio Door Upgrade
Replacement of an underutilized standard window unit with a new patio door to elevate ambient interior lighting and introduce direct yard access.
-
03
Reinforced Concrete Pad Extension
A new 4-inch nominal concrete slab-on-grade reinforced with a 10-mil vapor barrier and crushed base rock layer, pinned securely into the existing footings via heavy #4 epoxy dowels.
-
04
Sheltered Roof Canopy Structure
Integrated overhead protection utilizing 2x4 Douglas Fir #2 rafters spaced at 16 inches on-center framing into a double 2x8 roof beam system, supported by durable, treated 4x4 posts.
-
05
Setback-Compliant Storage Zone
Carefully positioned behind the existing 145 sq. ft. detached shed to maximize workspace layout while fully respecting the required 25-foot rear and 10-foot side property setback alignments.
Structural Detailing, Foundation Pinning, & CRC Frameworks
Modifying load-bearing frameworks and adding residential detached extensions triggers explicit structural plan reviews. Unified Studio Architect verified and detailed all framing, pinning, and material loads to pass Contra Costa County checks rapidly.
Wide Span Portal Framing
The reconstructed wall system details a high-capacity header route with solid double-post vertical paths. The layout fully satisfies wind-shear parameters without heavy structural iron timelines.
- Portal Span Width
- 16′-0″ Continuous
- Header Material
- Solid 4x12 Wood Beam
- Vertical Post Setup
- Double 2x4 (King & Jack Stud)
- Bracing Wall Logic
- CS-G Wood Panel System
Slab & Anchor Bolt Alignment
The foundation detailing incorporates heavy hold-down anchor bolts and thick plate washers to counter vertical lift, preventing structural alignment shifting over time.
- Slab Profile
- 4-Inch Nominal Concrete SOG
- Compacted Base Rock
- 4 to 6 Inches Compaction
- Anchor Bolt System
- 1/2″ Dia. Bolts w/ 2x2x3/16″ Washers
- Slab Connection
- #4 Epoxy Dowels @ 24″ O.C. into Footings
Overhead Canopy Integration
Avoided roof sagging risks by engineering explicit rafter spans, load-balancing beam distributions, and anchoring the layout securely onto preservative-treated posts.
- Rafter Configuration
- 2x4 DF #2 Framing @ 16″ O.C.
- Main Support Beam
- Double 2x8 Structural Profile
- Vertical Posts
- 4x4 Preservative-Treated Wood
- Load Review Check
- Continuous Path Verification Mandatory
California Regulatory Packages
The construction documentation aligns entirely with the unified triennial California structural, energy, and environmental sustainability frameworks.
- Residential Framework
- 2025 California Residential Code (CRC)
- Building Code Logic
- 2026 California Building Code (CBC)
- Sustainability Profile
- 2025 CALGreen + Local Amendments
- Field Safety Checks
- OSHA Regulated Clean Job Site
Contra Costa County Permit Submission Package Drawings
Our comprehensive residential modification drawing packages contain all architectural, structural, and detailing sheets required by California plans examiners to grant swift building authorizations.
Project Summary & Site Plan
Maps precise building coverage counts, property line adjustments, orientation markers, zoning compliance factors, and required yard setbacks.
Proposed Foundation & Roof Plan
Details the new concrete pad dimensions, framing connection hardware, post alignments, rafter layouts, and structural roof canopy interfaces.
Garage Framing & CS-G Details
Provides architectural partition framing metrics, wide portal header locations, sheathing nail spacing rows, and explicit hold-down straps.
Whether you are modernizing an aging detached garage or integrating an extended structural roof canopy, securing a highly detailed, code-compliant permit drawing set is vital for local building approvals. Unified Studio Architect coordinates every technical framing line to keep your project on track.
